Our Manual Concrete Block Making Machine QT4-40 is an easy operated brick machine, any workers can operate this block machine after short time training; with the low cost, the block machine suitable for small investment.
The advantage of our manual Concrete Block Making Machine QT4-40:
Low Cost：
Customers can spend less input cost to buy brick machines for cement brick production.
Easy Operation:
The machine operation is simple, workers can quickly and skillfully operate the equipment.
Convenient Maintenance:
The machine is small and flexible, and can be quickly switched to production when needed.
Good Quality:
According to different profewssional brick laying mould to lay out bricks, neat and thick, high qualification rate.
| Model NO. | QT4-40 |
| Certification | CE, ISO, SGS |
| Customized | as Per Buyer Request |
| Automatic Grade | Manual, Semi Automatic |
| Type | Vibration Molding |
| Product Type | Hollow, Solid, Paver, Curbstone, Interlocking |
| Condition | New |
| Method | Eletrical Vibration |
| Voltage | as Per Local Voltage |
| Mixer Model | Jd350 |
| Mould | Customized and Changeable |
| Workshop Area | 200 M2 |
| Labor Needed | 4 |
| Transport Package | Wooden Case or Steel Case Packing or by Container |
| Trademark | DJM |
| Origin | QUANZHOU, CHINA |
| HS Code | 84748090 |
| Main Parameters of Our Manual Concrete Block Making Machine QT4-40 | |
| Tamaño de la paleta | 860×540 mm |
| Pallet maximum forming area | 820×500 mm |
| Forming Height | 50-200 mm |
| Duración del ciclo | 60-70 Sec |
| Type of vibration table | Vibration |
| Excitation force | 48 KN |
| Tatol power | 9.6 KW |
| Total weight | 1.8 T |
| Capacity List of our manual Concrete Block Making Machine QT4-40 | ||||
| Block/ Brick Type | Picture | Talla | Pcs/Mould | Pcs/8 hours |
| Ladrillo macizo |  |
240×115×53mm | 26 | 12480 |
| 6 Inch Hollow |  |
400×150×200mm | 5 | 2400 |
| 8 Inch Hollow | |
400×200×200mm | 4 | 1920 |

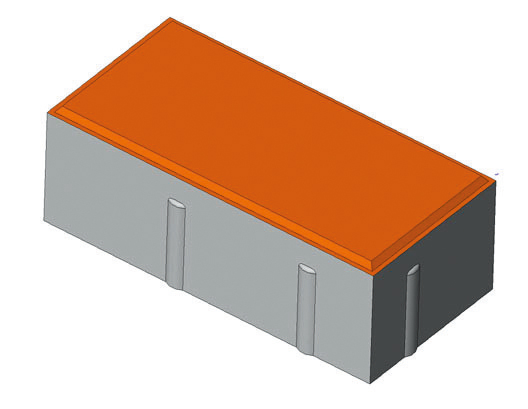

| Paving Brick |  |
200×100×60mm | 14 | 6000 |
Packing list of Our Manual Concrete Block Making Machine QT4-40
| 1 | JQ350 Pan Mixer | 1 set | 4 | Manual trolleys | 2 set |
| 2 | QT4-40 Host Brick Machine | 1 set | 5 | GMT brick pallet | 1000 pieces |
| 3 | Electrical PLC control Panel | 1 set | 6 | Spare parts | 1 set |
Our Manual Concrete Block Making Machine QT4-40 is an easy operated brick machine, any workers can operate this block machine after short time training; with the low cost, the block machine suitable for small investment.
