Semi-automatic block machine QT4-40A is one of our sell best block machine model, it is manual operation, suitable for making all types of hollow blocks, solid block, pavers, curbstones and so on. This machine equiped a larger reducer, its key rotary parts are changed into bearings, thickened square steel frame is used and wear resisting material is adopted for its inside sleeves for directional positioning for four guiding columns so that the service life of this machine can be largely prolonged. With the durable quality, stable running, easy operation and cheaper price attract many customers to buy it.
The advantage of our manual Concrete Block Making Machine QT4-40:
Low Cost：
Customers can spend less input cost to buy brick machines for cement brick production.
Easy Operation:
The machine operation is simple, workers can quickly and skillfully operate the equipment.
Convenient Maintenance:
The machine is small and flexible, and can be quickly switched to production when needed.
Good Quality:
According to different profewssional brick laying mould to lay out bricks, neat and thick, high qualification rate.
| Technical Specifications of Semi-automatic block machine QT4-40A | |
| Overall Dimension | 1350x1460x1800mm |
| Main vibration form | Platform vibration |
| Cycle Time | 40-50seconds |
| Vibrating Frequency | 2800-4500 rolls/minute |
| Motors Power | 9.6KW |
| Pallet Size | 860x540mm |
| Brick Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Applied Products | Hollow block, solid bricks, Paving blocks, Curbstone and so on |
| Applied Fields | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
|
Main parameters of Semi-automatic block machine QT4-40A |
|
|
Tamaño de la paleta |
860×540 mm |
|
Pallet maximum forming area |
820×500 mm |
|
Forming Height |
50-200 mm |
|
Duración del ciclo |
60-70 Sec |
|
Type of vibration table |
Vibration |
|
Excitation force |
48 KN |
|
Tatol power |
9.6 KW |
| Total weight |
1.8 T |
https://youtube.com/shorts/Vmu_o3QoF54
|
Capacity List of Semi-automatic block machine QT4-40A |
||||
|
Block/ Brick Type |
Picture | Talla | Pcs/Mould |
Pcs/8 hours |
|

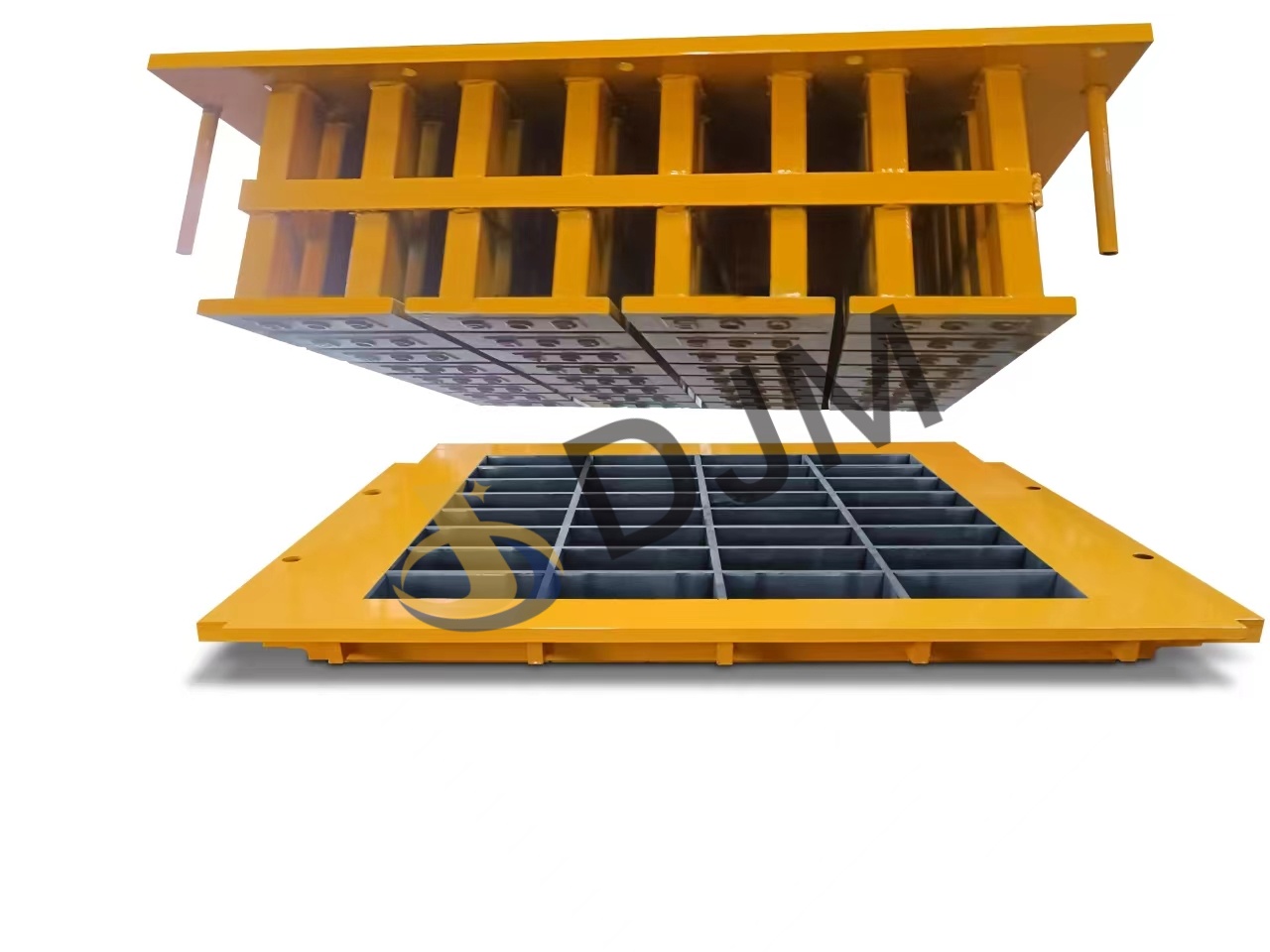

Standard brick |
 |
240×115×53mm | 26 |
15000 |
|
6 Inch Hollow |
 |
400×150×200mm | 5 |
2880 |
|
8 Inch Hollow |
|
400×200×200mm | 4 |
2304 |
| Paving Brick |  |
200×100×60mm | 14 |
7000 |
1.The proportion of aggregates, sand, cement, and the proportion of water in general hollow bricks, 88%:10%:2%, The ratio of raw materials changes according to the strength requirements of the product.
2.The requirement of particles of raw material?
Particles of sand：0—3mm
Particles of stone：1-3mm，，2—5mm，3—8mm & 8—12mm Generally, our stone requirements are within 10mm.
3.How many square meter of factory size required by Simple production line?
Total among 3000-5000㎡，including raw material storage 300-400㎡，main machine 300-400㎡，Curing area 800㎡，finished products 2000m²
4.DJM is a professional high-tech enterprise for concrete block making, owning R&D,
DJM Corporation se fundó a principios de la década de 1990,
que se encuentra en la ciudad de Quanzhou, cerca del puerto de Xiamen, china. Durante más de20 años,
nos hemos desarrollado rápidamente y cada vez somos más potentes gracias a la continua innovación tecnológica y a las patentes chinas.
Nuestros principales productos como flujos: máquina de bloques de hormigón. Máquina compuesta del panel de pared del aislamiento, cadena de producción permeable del ladrillo,
Sistema automático de cubicación, máquina de adoquines y bordillos, planta mezcladora por lotes y otra maquinaria de construcción.
Semi-automatic block machine QT4-40A is one of our sell best block machine model, it is manual operation, suitable for making all types of hollow blocks, solid block, pavers, curbstones and so on. This machine equiped a larger reducer, its key rotary parts are changed into bearings, thickened square steel frame is used and wear resisting material is adopted for its inside sleeves for directional positioning for four guiding columns so that the service life of this machine can be largely prolonged. With the durable quality, stable running, easy operation and cheaper price attract many customers to buy it
